Hygienic mass flowmeter with highest repeatability and compact transmitter for filling and dosing

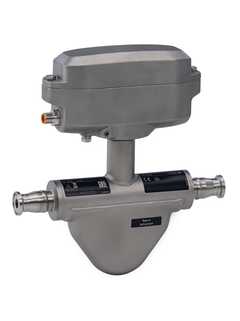

Dosimass Coriolis flowmeter

Mass flowmeter with hygienic design, highest repeatability and a compact transmitter

D8AB
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Dosimass for filling and dosing applications
  • F
  • L
  • E
  • X
©Endress+Hauser

Dosimass for filling and dosing applications in Food & Beverage and Life Sciences

Dosimass for filling and dosing applications in Food & Beverage and Life Sciences

IO-Link digital communication technology

Specs at a glance

  • Max. measurement error

    Mass flow (liquid): ±0.15 %
    Density (liquid): ±0.0005 g/cm³

  • Measuring range

    0 to 45 000 kg/h (0 to 1654 lb/min)

  • Medium temperature range

    –40 to +130 °C (–40 to +266 °F)
    150 °C allowed for 1 h

  • Max. process pressure

    PN 40

  • Wetted materials

    Measuring tube:
    1.4435 (316/316L) (DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈")
    1.4539 (904L) (DN 8 to 40 mm (³⁄₈ to 1 ½")
    Process connection
    1.4435 (316/316L) (DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈")
    1.4539 (904L) (DN 8 to 40 mm (³⁄₈ to 1 ½")

Field of application

Dosimass is designed for filling and bottling applications in Food & Beverage and Life Sciences. In applications with limited space, Dosimass is the preferred choice for system integrators, skid builders and equipment manufacturers. Dosimass measures volume and mass flow directly with temperature and density compensation to ensure maximum repeatability, independent of physical fluid properties such as viscosity or density. This enables the measurement of liquids with the most diverse properties.

The lightweight sensor is available with three electronics versions:

  • Pulse/frequency/status version for easy and economical use in filling applications

  • Intelligent pulse version with IO-Link provides continuous digital communication, allowing easy commissioning and documentation, real-time availability of process data, optimization of filling conditions and predictive maintenance

  • Integrated batching version with Dynamic Drip Correction over Modbus RTU for advanced filling control

Benefits

  • High and stable filling performance – high measuring accuracy and repeatability in shortest filling times

  • IO-Link allows real-time digital communication for easier commissioning and continuous data availability

  • Fewer process measuring points – multivariable measurement (flow, density, temperature)

  • Compact design for optimized machine footprint

  • Integrated batching functionality – filling process management solved by the flowmeter

  • Global compliance with industry standards – EHEDG, 3-A, FCM, cGMP

  • SIP and CIP cleanable

Videos

  • The Coriolis Flow Measuring Principle

  • IO-Link digital communication technology
    IO-Link communication

    IO-Link communication helps to digitalize your plant
